DTC Mazda B1624 Short Explanation

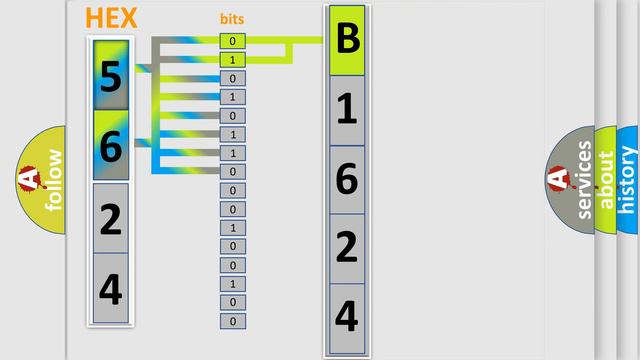

The video focuses on the basic Mazda specific diagnostic error code. Contents: 0:21 Basic DTC analysis according to OBD2 protocol standard. 1:48 Insight into programming - an explanation of what a bit is and how a byte is formed - decoding the Error Code to the base programming 2:58 A diagnostically understandable description of the Diagnostic Trouble Code 3:05 Basic error definition - Possible causes or errors of the car and its parts describing the mentioned error We will continue to work on improving the content. Our efforts at Maxidot s.r.o.the video content gets better. #maxidot #dtc #howto #diagnostictroublecode #mazda Make: Mazda Code: B1624 Definition: Fuel Level Sensor 1 - Circuit Short To Battery Or Open Description: The Body Control Module (BCM) provides a switched reference voltage on the fuel level signal circuit through a pull-up resistor that is connected to battery voltage. The BCM monitors the voltage on the fuel level signal circuit. The fuel level signal circuit voltage is adjusted based on the fuel level. The voltage value is then transmitted as a network message on the communication network. Cause: (N4) FUEL LEVEL SENSOR SIGNAL CIRCUIT OPEN(N4) FUEL LEVEL SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE(G109) FUEL LEVEL SENSE RETURN CIRCUIT OPENFUEL LEVEL SENSORBODY CONTROL MODULE (BCM)
