Flexible Mask Valvy [ DIY 3D Printed Face Mask - Merge Gcode Challenge ]

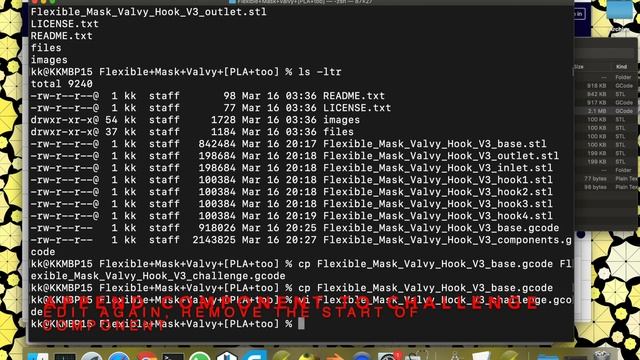

If you want to 3d print the Flexible Mask Valvy (https://www.youtube.com/watch?v=Ba6I9yH-qHk) with smooth surface (less travel line mark between hooks and Valvy), you will see the oldschool solution from this video. Original Speed Play Video : https://youtu.be/fwxDIQm8_Zs Use " ; " instead of " // " for the comment in Gcode. Use any editor. Personally I use vi on Mac. Two gcodes merge together as below: . . G1 F1200 X173.192 Y112.478 E3834.81711 G0 F7200 X172.923 Y112.181 G1 F1200 X173.701 Y111.403 E3834.83541 G1 X173.771 Y111.333 ;TIME_ELAPSED:9160.468280 ; remove all code after here G1 F3600 Z1.5 E3829.83541 ; lift up nozzle to Z1.5 and retract filament for travel G92 E0 ; set extruder current position as 0.0 ;LAYER_COUNT:50 ;LAYER:0 ;MESH:Flexible_Mask_Valvy_Hook_top3.stl M220 S100 G0 F4500 X206.64 Y26.943 ; manual travel to the first hook G0 F4500 Z0.5 ; lower the nozzle to Z0.5 G92 Z0 ; set current Z position as 0.0 G1 F1200 X206.987 Y27.085 Z0.2 G1 E5.2 ; undo retraction and add extra prime G92 E0 ; set extruder current position as 0.0 again ;TYPE:WALL-INNER G1 F3600 E0 G1 F1200 X206.987 Y27.085 E0.01247 G1 X207.388 Y27.31 E0.02776 G1 X207.666 Y27.519 E0.03933 . . Good luck **** BGM info: EDM Detection Mode by Kevin MacLeod is licensed under a Creative Commons Attribution license Artist: http://incompetech.com/ #iczfirz #supportfree
