Panasonic PT-RZ970 10,000 lumens-class compact Solid Shine Laser Projector Review

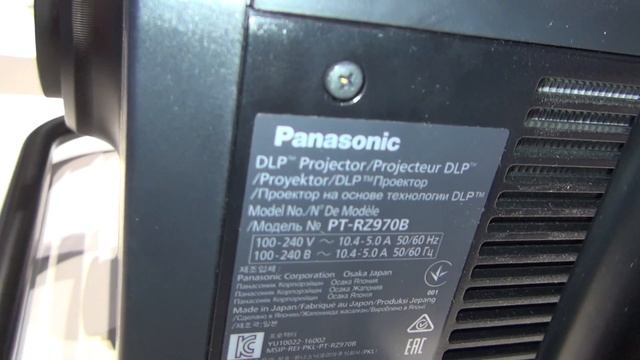

Review of Panasonic PT-RZ970 10,000 lumens class compact Solid Shine Laser Projector. Specification: Power supply 100–240 V AC, 10.4–5.0 A, 50/60 Hz Power consumption 1,050 W (0.3 W with Standby Mode set to Eco, 3 W with Standby Mode set to Normal, 85 W with Quick Startup set to ON); 742 W (Normal Mode), 617 W (Eco Mode), 410–588 W (Long Life 1 Mode), 375–588 W (Long Life 2 Mode), 349–588 W (Long Life 3 Mode), 82 W (Shutter Mode) DLP™ chip Panel size 17.0 mm (0.67˝) diagonal (16:10 aspect ratio) Display method DLP™ chip x 1, DLP™ projection system Pixels 2,304,000 (1920 x 1200) pixels Lens PT-RZ970/RW930 Powered zoom (throw ratio 1.7-2.4:1), powered focus, F 1.7-1.9, f 25.6-35.7 mm PT-RZ970L/RW930L Optional powered zoom/focus and fixed-focus lens Light source "Laser diodes (Class 1) (Class 3R for US models), light source life*2: 20,000 hours (Normal Mode*) / 24,000 hours (Eco Mode). At this time, brightness will have decreased to approximately half its original level [Operating temperature: 30 °C (86 °F), altitude: 700 m (2,297 ft), dust density 0.15 mg/m3, Dynamic Contrast Mode: 3] *Includes Quiet 1/Quiet 2 Mode." Screen size (diagonal) 1.27–15.24 m (50–600˝), 1.27–5.08 m (50–200˝) with ET-DLE055, 2.54–8.89 m (100–350˝) with ET-DLE030, 16:10 aspect ratio Brightness 10,000 lm (Center) / 9,400 lm / 8,000 lm (Quiet 1) / 6,000 lm (Quiet 2) Contrast 10,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3) Resolution 1920 x 1200 pixels Supported RGB signal XGA–WUXGA Supported video signal NTSC/PAL/SECAM, 480p/i, 720p, 1080p/i "Optical axis shift*4 (from center of screen)" Vertical +50 %, -16 % (powered) Horizontal +30 %, -10 % (+28 %, -10 % with the ET-DLE085/DLE105) (powered) Keystone correction range Vertical: ±40 ° (±22 ° with ET-DLE085/DLE055, +5 ° with ET-DLE030), horizontal: ±15 ° (cannot be operated with ET-DLE030) Keystone correction range with optional Upgrade Kit ET-UK20*5 Vertical: ±45° (±40° with ET-DLE150/ET-DLE250/supplied lens [DLE170], ±22° with ET-DLE085/ET-DLE055), horizontal: ±40° (±15° with ET-DLE085/ET-DLE055), Up to a total of ±55 ° during simultaneous horizontal and vertical correction. Installation Ceiling/floor, front /rear, free 360-degree installation Cabinet materials Molded plastic Dimensions (W x H x D) PT-RZ970/RW930 498 x 200 x 581 mm (19 19/32˝ x 7 7/8˝*6 x 22 7/8˝) (with supplied lens [DLE170]) PT-RZ970L/RW930L 498 x 200 x 538 mm (19 19/32˝ x 7 7/8˝*6 x 21 3/16˝) (without lens) Weight PT-RZ970/RW930 Approximately 23.2 kg (51.1 lbs) (with supplied lens [DLE170]) PT-RZ970L/RW930L Approximately 22.4 kg (49.4 lbs) (without lens) Operation noise 41 dB (37 dB [Quiet1] / 35 dB [Quiet2]) Operating environment "Operating temperature: 0–45 °C (32–113 °F)*8, operating humidity: 10–80 % (no condensation)" Applicable software Logo Transfer Software, Multi Monitoring Control Software, Early Warning Software, Geometry Manager Pro*9 (ET-UK20 Upgrade Kit*10 and ET-CUK10 Auto Screen Adjustment Kit*11)
