Manufacturing Execution System (MES): Interfacing SCADA and Equipment using Node-Red Middleware

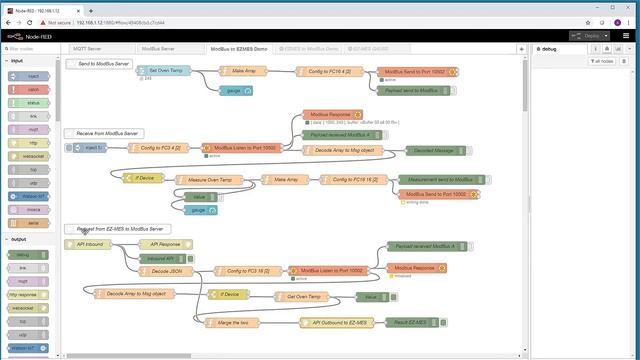

A Manufacturing Execution System (MES) is an information system for managing, tracking, controlling, documenting and improving work-in-process on a factory floor. EZ-MES is a real time, browser based Manufacturing Execution System. Real time means that all changes in a multi-user environment are immediately processed and visualized. This video demonstrates the use of the EZ-MES API to interface with SCADA systems and equipment using a middleware layer, in this case Node-RED. The three main systems used in this demo are: the EZ-MES software, a Node-RED middleware environment, and a ModBUS server. Node RED is a comprehensive flow-based system for visually wiring together hardware devices. It was originally developed by IBM and is now an open source JS Foundation project. In this demo, Node-RED is used to connect EZ-MES to a ModBUS server which stores the actual oven temperature. ModBUS is a commonly used communication protocol to connect industrial devices such as, PLCs and equipment. For more information, please visit our website at https://eazyworks.com/. Related videos: - Extension for Wafer Map Tracking: https://youtu.be/Wk9bKiVVnuA - Extension for real-time Equipment Tracking: https://youtu.be/NqMo0QyMBQM Thank you for watching this video.
