Testing Detritus, the 8-bit computer made from junk parts

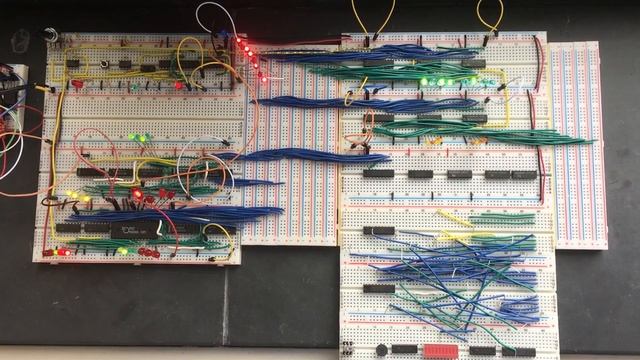

Day 7: rebuilding registers as part of the new ALU. Now with a clock; program counter; RAM; A and B registers. Most of the blinky lights are showing the program counter, which is enabled as output to the bus; and enabled as input for both A and B registers and the RAM memory address register. The red lights in the lower left are showing the random contents of RAM at those addresses as they scroll past. For the whole build log, head over to https://hackaday.io/project/22166-detritus-the-8-bit-computer
Day 7: rebuilding registers as part of the new ALU. Now with a clock; program counter; RAM; A and B registers. Most of the blinky lights are showing the program counter, which is enabled as output to the bus; and enabled as input for both A and B registers and the RAM memory address register. The red lights in the lower left are showing the random contents of RAM at those addresses as they scroll past. For the whole build log, head over to https://hackaday.io/project/22166-detritus-the-8-bit-computer
