ADRV9001 Quick Start Guide

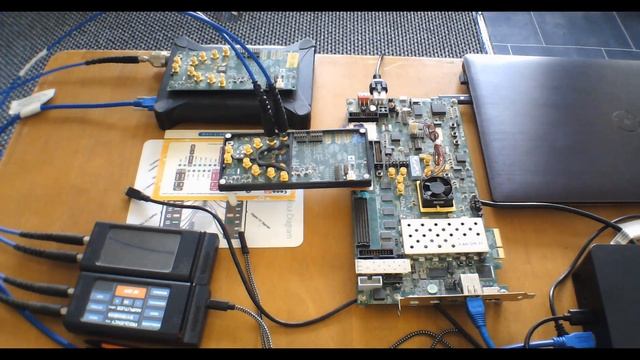

The ADRV9001 Transceiver Product family comes with the Transceiver Evaluation Software and Software Development Kit as standard provided by Analog Devices International. These Software tools can be downloaded from analog.com on the product page: analog.com/ADRV9002 - https://analog.com/ADRV9002 This video tutorial will go through all the steps needed to download, install and verify the operation of these Software packages in a step-by-step fashion. Anyone who has questions regarding this procedure or regarding the product family in general can find more information at the following locations: - Analog Devices Product Page - https://analog.com/ADRV9002 - Design Support Forum - https://ez.analog.com/wide-band-rf-transceivers/design-support-adrv9001-adrv9007/ - TES GUI SW Support Forum - https://ez.analog.com/wide-band-rf-transceivers/tes-gui-software-support-adrv9001-adrv9007/ Timestamps: - 00:00 Intro - 00:41 Downloading the SDK - 01:36 Extracting the SDK - 02:48 Exploring the SDK - 03:22 Installing TES and SD Card Imaging Tool - 04:28 Opening TES and Powering on FPGA - 05:28 Initial TES Setup - 07:12 Configuring and Programming the Device - 08:32 Running Tx - 09:25 Running Rx - 10:12 Shutting Down - 10:30 Where to go next?
