Asus F515J notebook screen replacement guide by LaptopScreen.co.uk

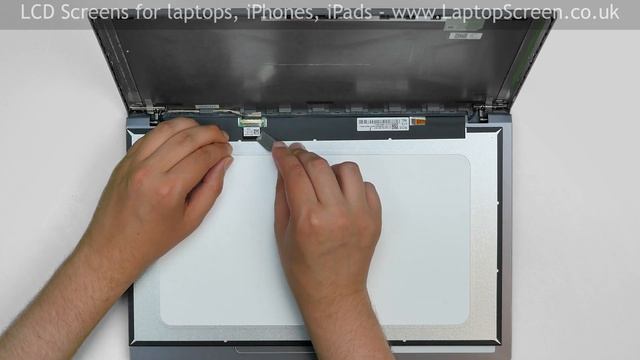

This is an Asus F515J screen replacement guide For the replacement process we’ll need the following tools: - X-Acto knife - Small Phillips screwdriver - Heat Gun - Plastic Pick and Metal Pick To begin turn off the laptop and disconnect the power cord. The bezel is held in place with two Phillips screws in the bottom corners. Use an X-Acto knife to remove two tiny pieces of plastic covering the screws. Remove the screws. Start removing the bezel. Using both hands pull the bezel away from the screen. Start from the left side. Then go around the perimeter unsnapping the tabs underneath. Separate the hinge cover. Remove the bezel. The LCD screen is slightly glued to the plastic cover. We need a Heat Gun to soften the glue. Warm up both sides of the top cover. Using plastic pick start separating the LCD screen. Move the plastic pick along the right and left sides of the screen. Once separation is achieved place the LCD screen on the keyboard. Use a metal pick to peel off the clear tape securing the video connector. Open the connector and put the screen aside. Take the new LCD screen and place it on the keyboard. Reconnect the video cable. Secure it with a clear tape. CAUTION! It is very important not to force any connectors. As well you must not twist or slant the connector when plugging it in. Lift the screen up. Press firmly along the left and the right sides of the LCD screen to glue it back tho the cover. Before we continue it is better to check if the screen is working. Press the power button and if the start up graphics appears we can finish the installation process. Turn the laptop off. Start replacing the bezel. Insert the hinge covers in its slots. Then go around the perimeter snapping the tabs back in place. Use one hand to support the back cover while snapping the tabs along the bottom side. Replace the two Phillips screws in the bottom corners. Replace the two plastic covers. Reconnect the power cord. Turn the laptop on. And We are done!
