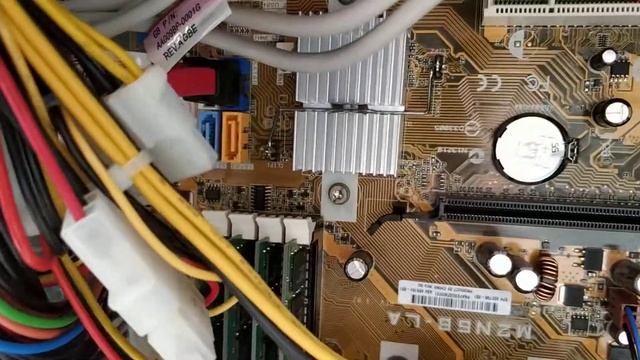

ASUS M2N68-LA, Sockel AM2, AMD Motherboard
ASUS M2N68-LA, Sockel AM2, AMD Motherboard https://amzn.to/378upnR CPU AMD Socket AM2+ / AM2 Processors for AMD Phenom™ FX / Phenom / Athlon™ / Sempron™ AMD Cool'n'Quiet™ Technology Support 45nm Phenom™ II CPU Chipset NVIDIA nForce 630a System Bus 2000/1600 MT/s Memory 4 x240-pin DIMM, Max. 8 GB, DDR2 1066/800/667/533 ECC,Non-ECC,Un-buffered Memory Dual Channel memory architecture Due to AMD CPU limitation, DDR2 1066 is supported by AM2+ CPU for one DIMM per channel only. Please refer to www.asus.com or user manual for Memory QVL. When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended. Expansion Slots 1 x PCIe x16 2 x PCIe x1 4 x PCI 2.2 Storage Southbridge 1 xUltraDMA 133/100/66/33 4 xSATA 3 Gb/s ports NVIDIA® MediaShield™ RAID Support RAID 0,1,0+1,5,JBOD span cross Serial ATA drives LAN NVIDIA nForce built-in Gigabit MAC with external Realtek 8211CL PHY Audio 8 -Channel High Definition Audio CODEC - Optical S/PDIF out port at back I/O - Support Jack Detection and Multi-streaming USB 10 USB 2.0 ports (6 ports at mid-board, 4 ports at back panel) ASUS Unique Features ASUS Express Gate: 1. Access the Internet in 5-second* boot time without entering Windows 2. A built-in OS offers instant fun platform for Internet and Instant Messenger! 3. Friendly Picture Manager Interface * The actual boot time is subject to hardware configurations and product models. ASUS Quiet Thermal Solution: - ASUS Q-Fan ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 Special Features ASUS AI NET 2 ASUS MyLogo 2 Back Panel I/O Ports 1 x PS/2 Keyboard port(purple) 1 x PS/2 Mouse (green) 1 x LAN (RJ45) port 4 x USB 2.0/1.1 ports 1 x Parallel(Printer) Port 1 x Optical SPDIF out 1 x COM Port 8-channel Audio ports Internal I/O Connectors 3 x USB 2.0 connectors support additional 6 USB 2.0 ports 1 x Floppy disk drive connector 1 x IDE connector 4 x SATA connectors 1 x CPU Fan connector 1 x Chassis Fan connector 1 x Power Fan connector 1 x Chassis Intrusion connector 1 x CD audio in 1 x 24-pin ATX Power connector 1 x System panel connector 1 x S/PDIF Out connector 1 x Front panel audio connector 4-pin ATX 12V Power connector BIOS 8 Mb Flash ROM AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI2.0a, SM BIOS2.5 Accessories 1 x UltraDMA 133/100/66 cable 1 x SATA cable 1 x SATA power cable 1 x I/O Shield User's manual *Note: The floppy disk drive cable is purchased separately. Support Disc Drivers ASUS PC Probe II ASUS Update Anti-virus software (OEM version) Form Factor ATX Form Factor 12 inch x 9.25 inch ( 30.5 cm x 23.6 cm )
