IE-VX-MEGA128 Microcontroller Board

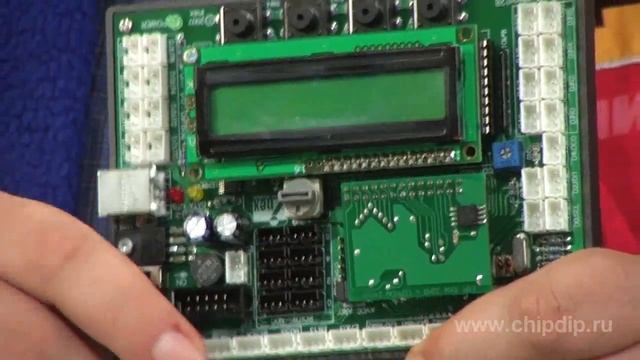

IE-VX-MEGA128 Microcontroller BoardIE-VX-MEGA128 is a debugging set for the development of systems on the basis of ATmega128 microcontroller which is an 8 bit AVR microcontroller with an in-system programmable Flash memory of 128 Kbytes. The board is fitted with 3 INEX standard pin connectors for different Innovative Experiment peripherals including motor drivers, 433MHz receivers, ultrasonic distance sensors, infrared sensors and transmitter-receivers. Features:• onboard microcontroller ATMEGA128: 128Kb Flash memory programs, 64Kb RAM, 4Kb EEPROM;• all microcontroller ports are accessible on 3 pin connectors (INEX standard);• feed circuits;• ISP connector;• USB-UART bridge;• 4 push buttons;• character two-line LCD;• 3 INEX standard pin connectors for various periphery;• 32Kb RAM / 32Kb EEPROM memory module Plug-In. The kit includes:• ATmega128 Microcontroller board;• Plugable RAM and EEPROM memory module;• USB cable;• CDROM with software and documentation.
