DRUM BLADE RICOH MP 2553 3053 3353 2352 2852 3352 TUTORIAL

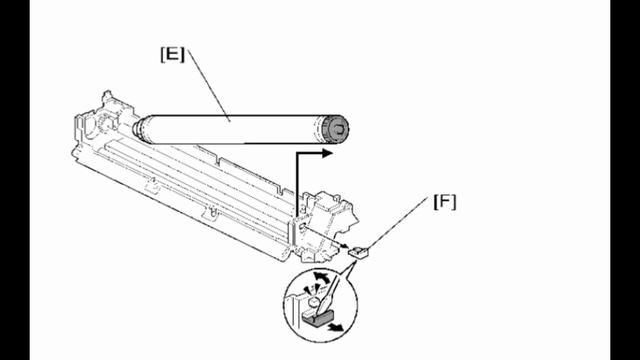

How to Remove the PCU and replace OPC Drum, Charge Roller, Cleaning Roller, Cleaning Blade Copier Ricoh Aficio MP2553SP MP3053 MP3053SP MP3353 MP3353SP MP2352 MP2852 MP2852SP MP3352 MP3352SP. Do SP2801. This initializes the developer and resets the TD and ID sensor outputs to their defaults. It also resets the PCU counter. D1203000 PCU EXP ASSY B0392335 PICKOFF PAWL B0392343 DRUM SHUTTER B0392350 CLIP OPC DRUM AD041114 BLADE CLEANING AB011403 GEAR 13Z AB011402 GEAR 14Z AD027018 ROLLER CHARGE AA143444 STEPPED SCREW AD042058 CHARGE CLEANER BRUSH ROLLER B0392287 CHARGE ROLLER SPRING B0392292 FRONT PRESSURE ARM CHARGE ROLLER B0392293 PIN FRONT PRESSURE ARM D1203174 ARM PRESSURE CHARGE REAR D1203175 ELECTRODE PLATE ROLLER CHARGE D1203183 GEAR IDLER TONER RECYCLING D1203180 COVER PCU FRONT D1203193 SHUTTER PCU A2673194 COMPRESSION SPRING SHUTTER PCU D1203210 DRUM STAY FRONT D1203233 DRUM STAY REAR SUB D1203320 DEVELOPMENT ROLLER B0393060 DEVELOPMENT ROLLER GEAR B0393062 IDLER GEAR 16Z D1203360 CASE DEVELOPMENT ROLLER D1203371 CASE DEVELOPMENT D1203440 JOINT DEVELOPMENT B0399510 OPC DRUM YOUTUBE SUPPORT: https://www.youtube.com/channel/UCOHtXTtGHj33pUm8Gf2FH3A/join PATREON: https://www.patreon.com/CopyExpertMovieStudio PATRONITE: https://www.patronite.pl/1796 ?Camera: CANON EOS250D ? Plan lighting: Sachtler Reporter 200D ? Microphone: Trust GXT 252 + Emita Plus Steraming ? Movie editing program: WonderShare Filmora Copier parts http://www.copy-expert.pl/ Facebook: https://www.facebook.com/Copy-Expert-113431678801597/ Used copier parts http://www.copy-expert.com/ Are you interested in cooperation? That's good. ? Please contact: copy-expert@wp.pl Utylizacja kopiarek http://www.oddajelektrosmieci.pl/ كيفية إزالة PCU واستبدال طبل OPC ، تهمة الأسطوانة ، تنظيف الأسطوانة ، تنظيف بليد ناسخة ريكو Aficio MP2553SP Cómo retirar la PCU y reemplazar el tambor OPC, el rodillo de carga, el rodillo de limpieza, la copiadora de la cuchilla de limpieza Ricoh Aficio MP2553SP Come rimuovere la PCU e sostituire il tamburo OPC, il rullo di caricamento, il rullo di pulizia, la copiatrice della lama di pulizia Ricoh Aficio MP2553SP
