Joule thief inverter - charger

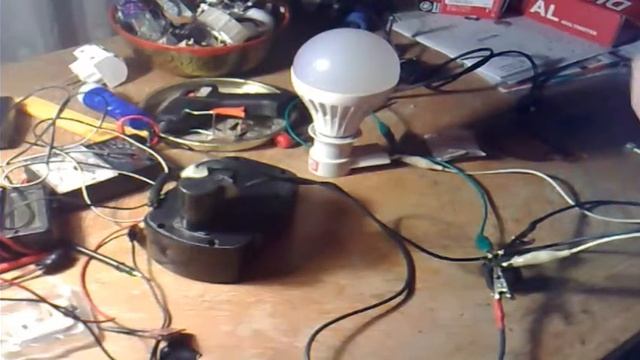

This is joule thief circuit running on 12V. It has bifilar coil wounded N=30 times on ferrite rod. Can be used as radiant charger - desulphator. Radiant DC spikes can be transformed by this small ferrite transformer which can power 230V 10W LED or 230V 40W glue gun.
