Denon DCD-1550AR Teardown

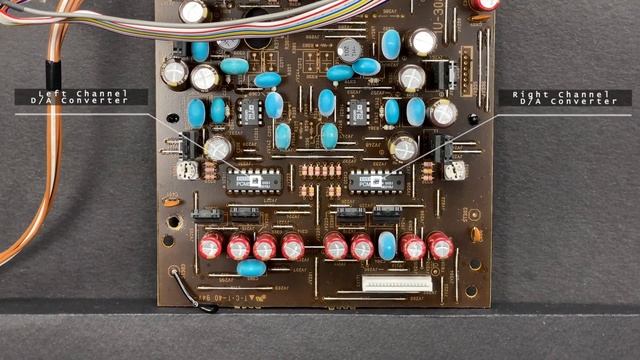

bored_tech Patreon: https://www.patreon.com/bored_tech bored_tech Instagram: https://www.instagram.com/bored_tech Dissecting the CD Player: How to Turn Shiny Plastic into Music https://youtu.be/3yJqlD9RxD4 Burr-Brown PCM61P specifications: https://datasheetspdf.com/pdf/37433/Burr-BrownCorporation/PCM61P/1 Denon DCD-1550AR Specifications AUDIO No. of Channels: 2 channels Frequency Response: 2 ~ 20,000 Hz Dynamic Range: 112 dB Harmonic Distortion: 0.0025% (1 kHz) Separation: 105 dB (1 kHz) Wow & Flutter: Below measurable limit (+/- 0.001% W.peak) Output Voltage: FIXED 2.0V, VARIABLE 0~2.0V DISCS: Compact Disc Format GENERAL CHARACTERISTICS Power Supply: 50 Hz, voltage is shown on rating label Power Consumption: 16 W Dimensions: 434(W)x134(H)x340(D)mm Weight: 7.4 kg FUNCTIONS AND DISPLAY Functions: Direct selection, automatic search, programmed playback, repeat playback, manual search, auto space, time mode, auto edit, peak search, fader Display: Track number, time, music calendar, and engaged modes Others: Headphones jack REMOTE CONTROL UNIT RC-251 Remote Control System: Infrared pulse system Power Supply: 3 V DC: (2x standard size AA) External Dimensions: 60(W)x177(H)x18(D)mm Weight: 100 g (including batteries)
