Cutting Gaskets on the CNC Router - 30cc Wallaby Engine Build Part 20

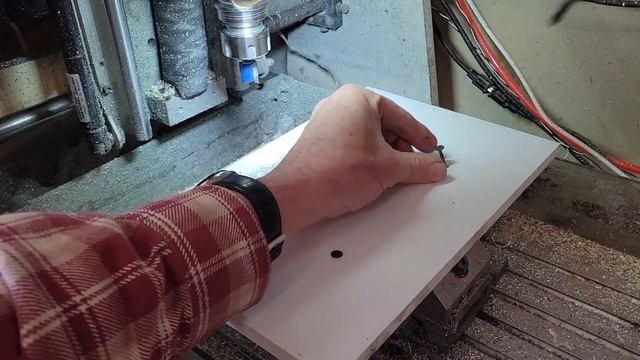

In this episode we will use the CNC router to cut out the first gaskets required to assemble the Short block for our 30cc Wallaby Engine. Fusion360 is used to create the tool paths to cut out the gasket. We will take a look at the drag knife used and discuss some of the challenges in cutting thin material on the CNC router. Visit my Patreon Page: https://www.patreon.com/user?u=34294072 Drawings now Available - Free Plans download: https://gregsmachineshop.com/downloads-wallaby-twin-four-stroke-ic-engine Complete playlist for building the Wallaby 30cc Engine: https://www.youtube.com/playlist?list=PLKT0h7pDH7K1OjZa4AbGAWBWJTWOZr4h- 0:00 Introduction 1:11 Gasket Overview 2:26 Drag Knife 3:18 Prepearing the CNC Router Bed 3:52 Fusion360 Tool Path Generation 5:04 CNC Router cutting the Gasket 5:20 Review the finished Gasket 5:52 Test Fitting the Gasket 6:24 Summary
